Just Accepted
Just Accepted Articles have been posted online after technical editing and typesetting for immediate view. The final edited version with page numbers will appear in the Current Issue soon.
Submit a Manuscript
Manganese valence modulation in ZnGa2O4 via simultaneously localized charge accumulation and oxygen vacancy engineering controlled by Li+ and F- substitutions for tailored applications
C. X. Chen, W. Y. Li, C. Y. Ni, W. B. Dai*
https://doi.org/10.1016/j.cjsc.2026.100868
ZnGa2O4; Valence modulation; Mn; Lattice site engineering; Multimodal PL
ABSTRACT

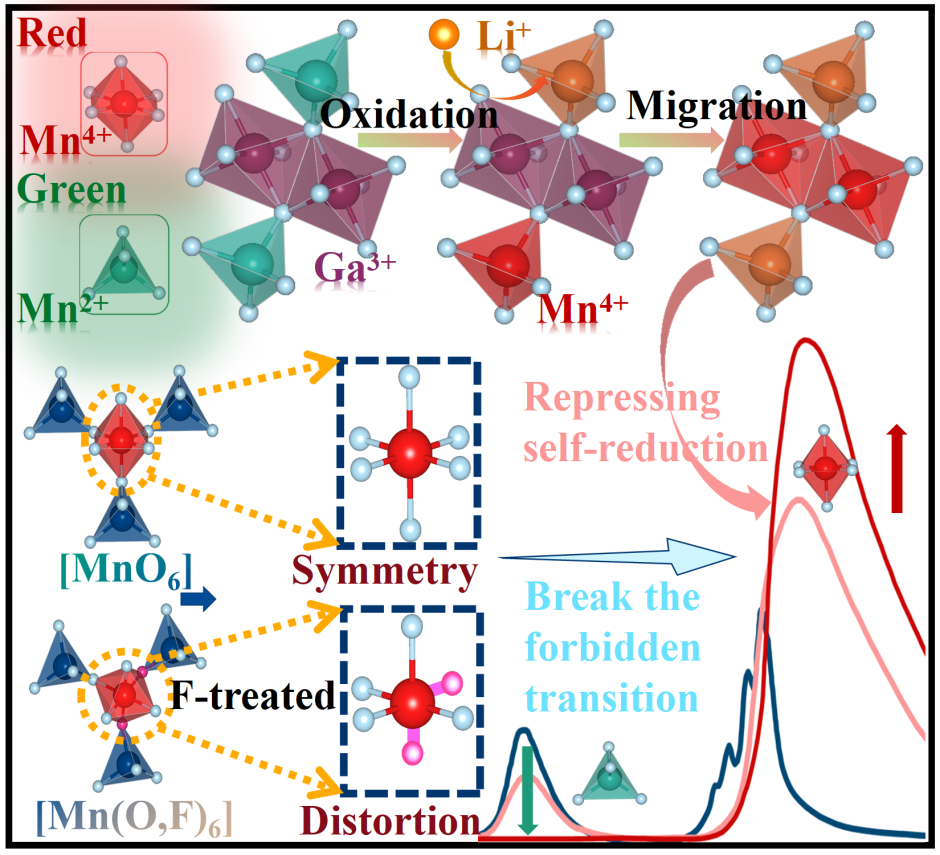

Mn-activated phosphors have attracted great attention, but the inevitable self-reduction of Mn4+ to Mn2+ and precise regulation of Mn4+/Mn2+ content remain serious challenges. Herein, through solid-state reaction in air, we demonstrate that the degree of self-reduction and valence of Mn can be accurately manipulated in normal spinel ZnGa2O4 (ZGO) by incorporation of Li+ and F-, achieving color-tunable photoluminescence (PL) as desired, from blue self-luminescence to red/green emission of Mn4+/Mn2+. Both theoretical (i.e., density functional theory, bond energy theory) and experimental (i.e., dynamic/static spectroscopy) analyses indicate that Li+ occupying the tetrahedral Zn2+ site can push Mn4+ into the octahedral Ga3+ site and restrain self-reduction of Mn4+ owing to localized charge accumulation around Li+ that depletes excess electrons. Furthermore, F− substitution can repair intrinsic oxygen vacancies, further suppressing self-reduction and detrimental electron-capturing effects. Meanwhile, Li+/F− incorporation can distort ZGO and break the forbidden transition of Mn4+, leading to broadened PL and enhanced efficiency. The long-persistent PL (LPL) of ZGO: Mn/Li/F with wide shallow/deep traps is also explored in depth. Finally, the Li/F-dependent tunable PL and LPL of ZGO: Mn/Li/F show great potential for applications in ratiometric optical thermometers, plant lighting, white LEDs, and dynamic anticounterfeiting.
- Address: Fuzhou High & New Technology Industrial Zone, Shangjie, Minhou, Fuzhou, Fujian 350108, China
- Tel: (86)-591-63173769, 63173770
- E-mail: cjsc@fjirsm.ac.cn
CN 35–1112/TQ, ISSN 0254–5861, Online ISSN: 2949-768X Copyright @ 2022 Chinese Journal of Structural Chemistry-www.Chinese Journal of Structural Chemistry.net. All Rights Reserved 闽ICP备2022002645号-1
